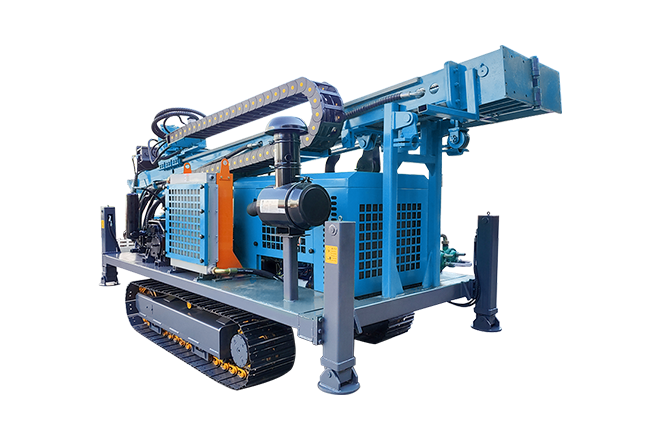

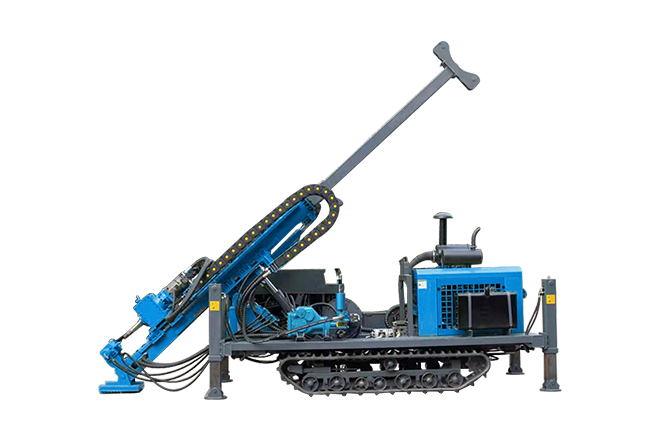

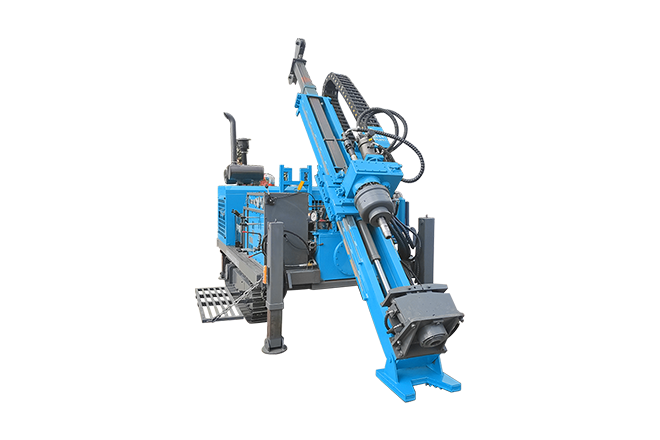

MWLH600 Full hydraulic core drilling rig

Product Introduction

Rotation Head
Rotation head adopts mechanical two-speed stepless speed regulation design. The low-speed torque is multiplied, and the drilling is stable and reliable. The rotation head is equipped with a lateral translation mechanism, which is convenient for lifting and releasing the drilling tool.

Hydraulic Motor
The hydraulic motor has the characteristics of compact structure, small size, impact resistance, long life and large torque, which greatly improves drilling efficiency.

Power Part
Adopting Yuchai turbocharged engine and triple gear pump full hydraulic drive, the system pressure is high and the power output is strong.

Structural Part
The crawler of the drilling rig adopts a low-speed high-torque hydraulic motor, wireless remote control walking, high safety performance, strong climbing ability, and the moving speed of the whole machine can reach 2Km/h, which is suitable for transition and operation in mountainous areas and muddy ground.

Hydraulic System
The hydraulic system is equipped with double hydraulic oil filtration, two-stage air cooling +one-stage water cooling system, which ensures the heat balance and cleanliness of the hydraulic system, and greatly improves the stability and durability of the drilling rig. The hydraulic hose adopts two-layer steel wire braided high-pressure hose, plus a protective sleeve, which is wear-resistant.

Show details

Technical data

Rig model	MWLH-600	MWLH-800	MWLH-1000
Total Weight	4500kg	6000kg	7300kg
Machine size (transportation state)	4500* 1900*2650mm	450021002800mm	560022003000mm
Machine size (working state)	450025006100mm	450026007900mm	56002600 8500mm
Drlling angle	45-90°	0-90°	0-90°
Mast sliding stroke	800mm	1200mm	1200mm
BTW	650m	1200m	1400m
NTW	600m	1000m	1200m
HTW	300m	800m	1000m
power head lifting force	240kN	300kN	360kN
power head propulsion	120kN	150kN	180kN
Rotary speed of power head	0-1400rpm(stepless speed regulation)	0-1400rpm(stepless speed regulation)	0-1400rpm(stepless speed regulation)
Maximum rotary torque of power head	1400N.m	1800N.m	2600N.m
Power head propulsion stroke	2000mm	2000mm/3500mm(Optional)	3500mm
Hydraulic system	Main pump 32MPa2,auxiliary pump 20MPa3	Main pump 32MPa2,auxiliary pump 20MPa3	Main pump 32MPa* 2, auxiliary pump 20MPa*3
cooling system	Water cooling + integrated air cooling	Water cooling + integrated air cooling	Water cooling + independent air cooling
power system	Yuchai four-cylinder 92kW/2400rpm (optional)	92kW/118kW/2400rpm (optional)	Weichai six-cylinder 129kW/2400rpm
Hydraulic winch rope capacity	800m(6mm steel wire rope)	1000m(6mm steel wire rope)	1200m(6mm steel wire rope)
Hydraulic winch lifting force	15kN	20kN	24kN
Hydraulic winch lfting speed	110m/min	110m/min	110m/min
Supporting mud pump	BW90/BW100/BW160(Optional)	BW90/BW100/BW160(Optional)	BW90/BW100/BW160(Optional)
Track model	Rubber/6t steel 300mm/8t steel 400mm (optional)	6t steel 300mm 38 sections/8t steel 400mm*43 sections (optional)	8t steel /400mm*43sections
Maximum climbing angle	25°	30°	30°
top speed	2km/h	2km/h	2km/h
